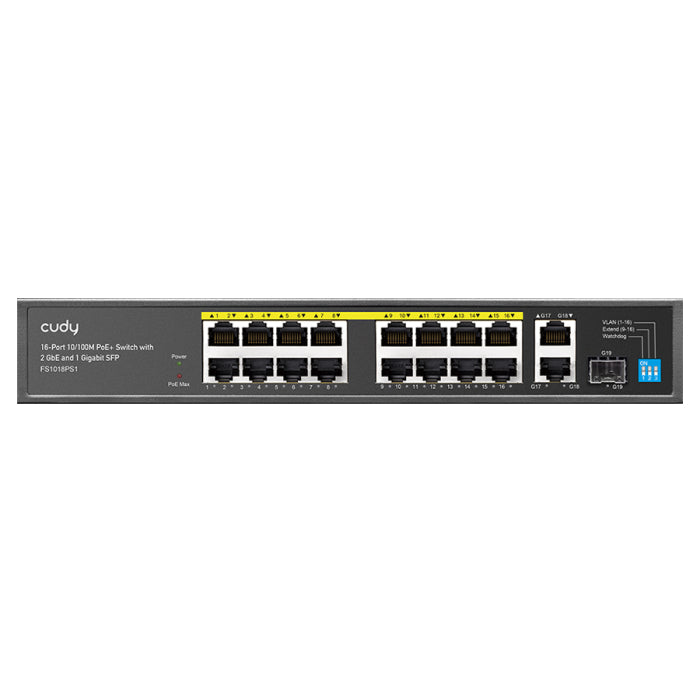

Cudy 16 Port Fast Ethernet PoE 190W 2 Gigabit 1SFP Switch

Cudy CD-FS1018PS is a 16-Port Fast Ethernet switch with 16x 802.3af/at PoE ports, 2x Gigabit, and 1x SFP Uplink ports. The switch offers a 190W PoE budget, up to 30W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-16 while Extender mode increases the transmission distance on ports 1-16 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections when in VLAN or Extender Mode. If an error is detected on the device, the switch immediately restarts the port. The unit features a PoE Max LED that blinks at 90% usage and stays solid at 95%.

Product Spec:

Ethernet Ports: 16x 10/100 ; 2x 10/100/1000
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 10W

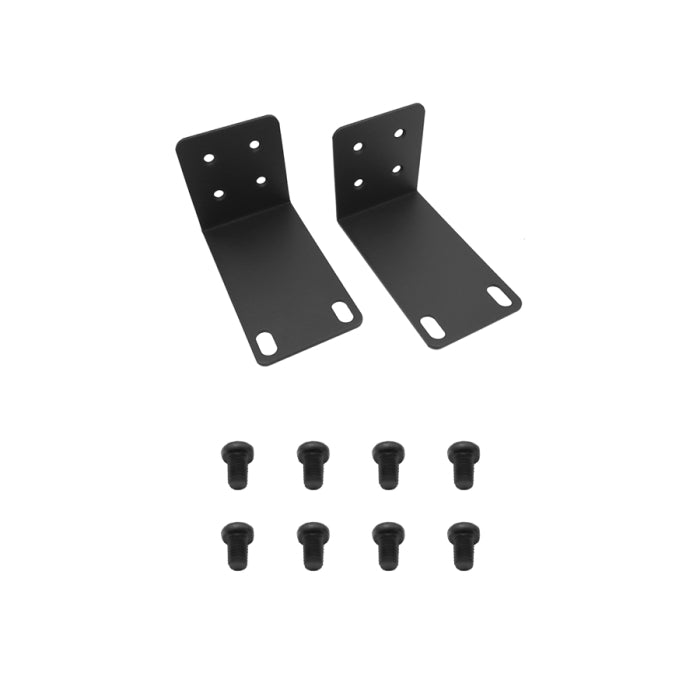

Mounting: Rack-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~16

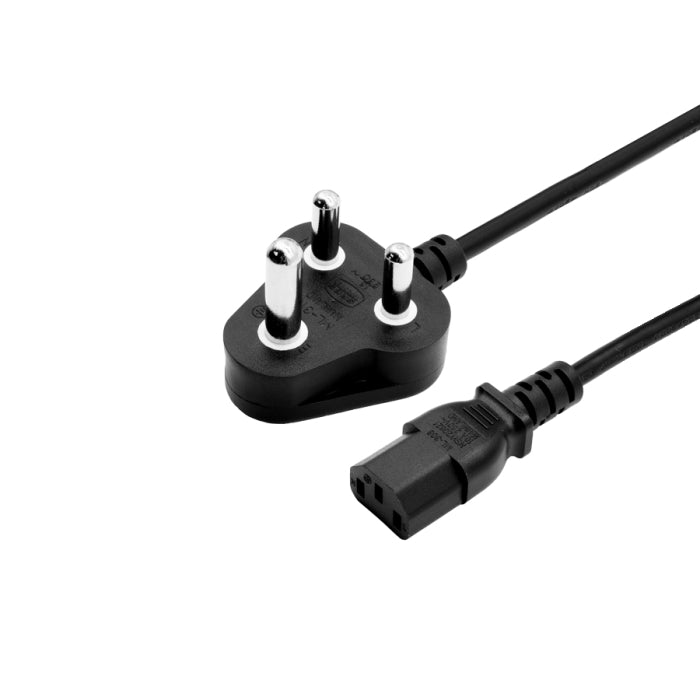

Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 100-240V

Dimensions: 320 x 210 x 50mm
Weight: 1.8kg
