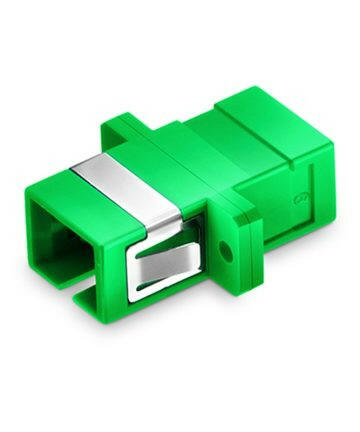

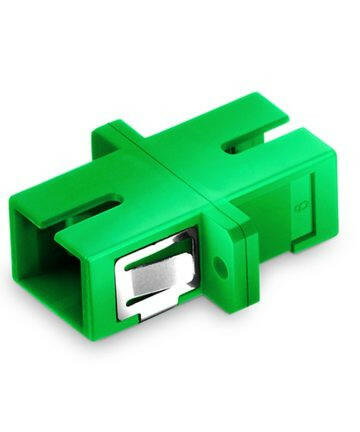

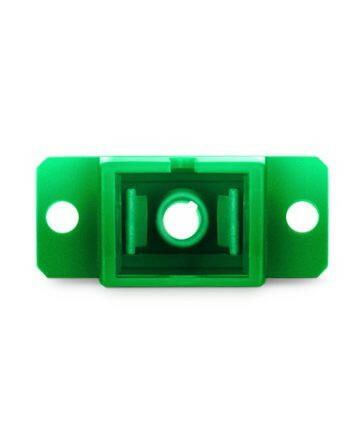

Fiber Mid Coupler Adapter – SC to SC APC Single Mode Simplex
Fiber Mid Coupler Adapter – SC to SC APC Single Mode Simplex
Couldn't load pickup availability
The fiber optic mid coupler adapter is a small device designed to join fiber optic cables or connections between two points.
Using our precise fiber optic adapters to join connection points, light sources will be able transmit signal as incredibly low loss levels thanks to the ceramic ferrule insert that precisely align fiber connectors. Our fiber optic adapters have the benefits of low insertion loss as well as high insertion durability.
The fiber optic mid coupler adapter is perfect for patch panels, wall mount or din rail enclosures. These mid couplers can clip to the appropriate port on each type of enclosure with their stainless steel side clips. Sometimes requiring mid coupler fixing screws.

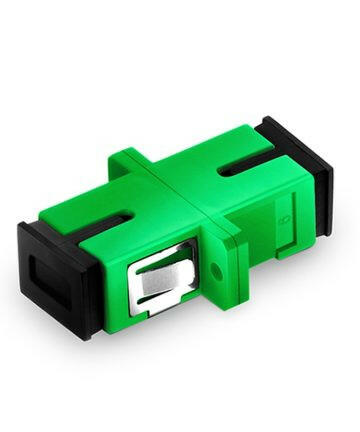

Dust caps are included with each mid coupler.
Product Spec:
| Connector Type | SC-SC |
| Body Style | Simplex |
| Polish | APC |
| Fiber Type | Single Mode (9/125μm) |
| Insertion Loss |
≤0.2dB
|
| Durability | 1,000 times |
| Mounting Type | Flanged |
| Colour | Green |
| Body Material | PVC Plastic / Stainless Steel Clip |
| Sleeve Material | Ceramic |
