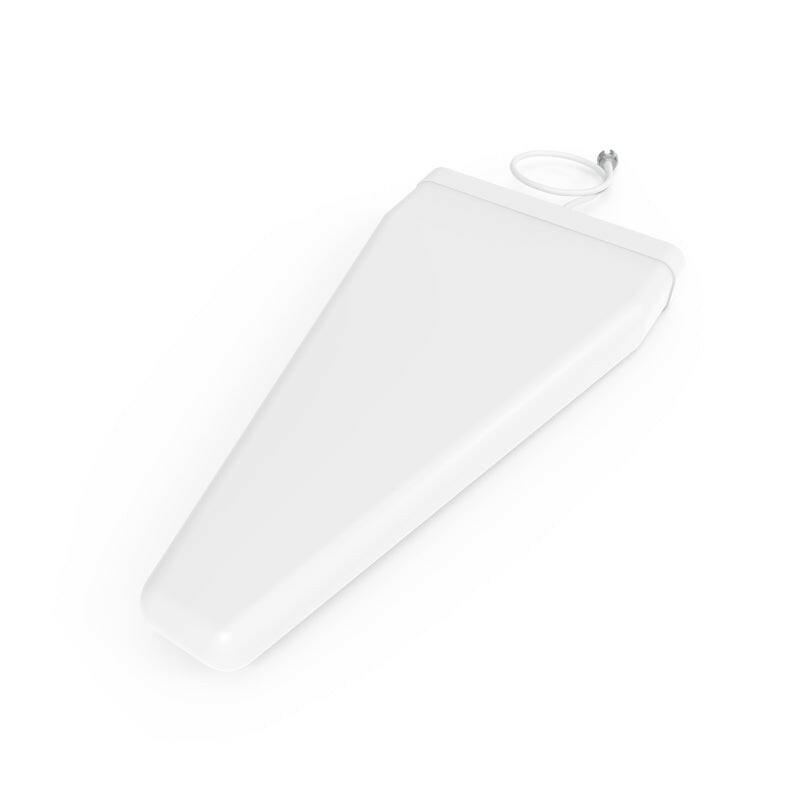

LPDA-93 High Gain Directional Antenna

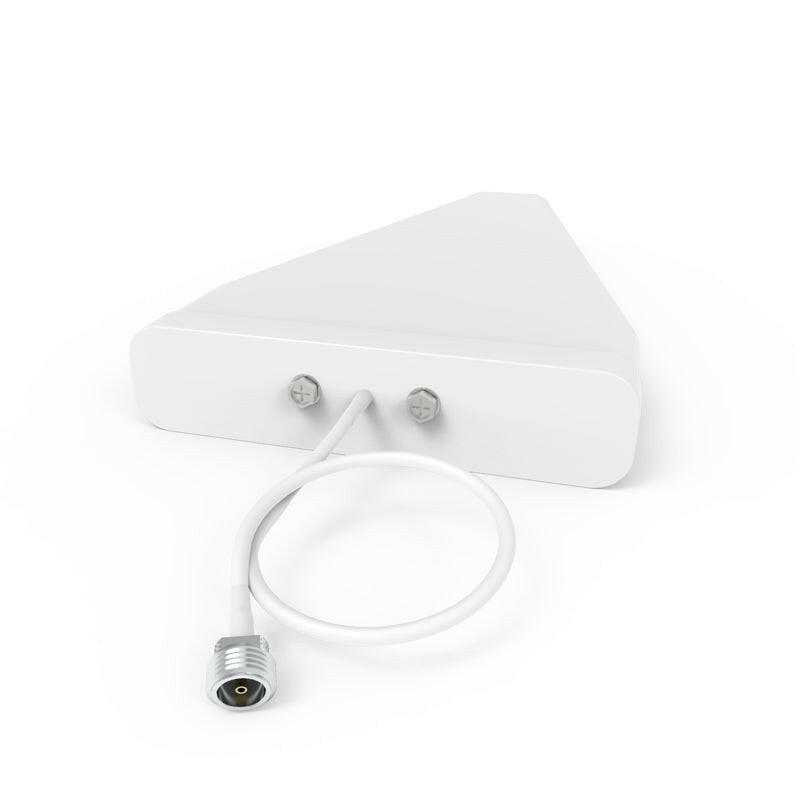

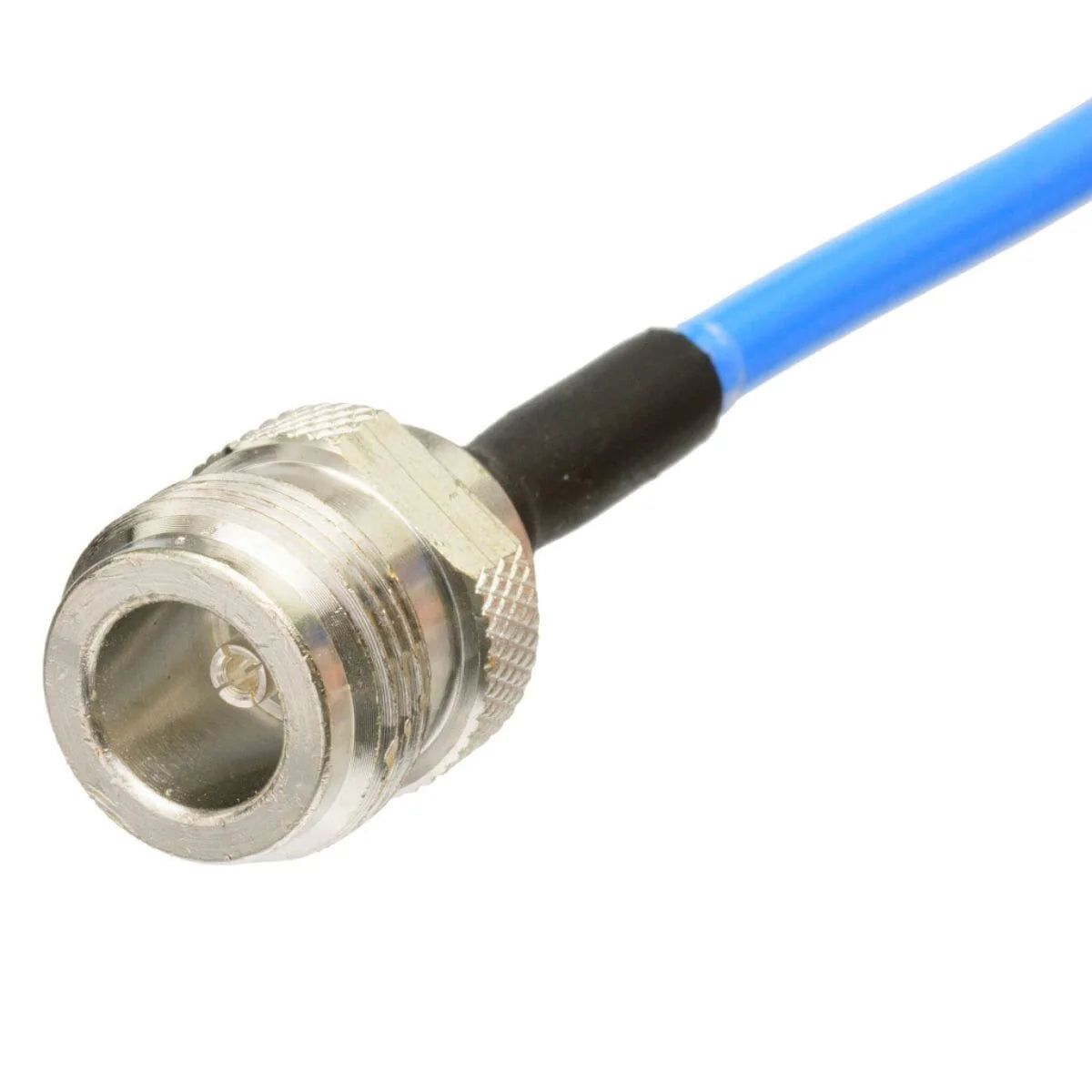

The LPDA Antenna 698~2700MHz – 11dBi is an excellent full spectrum outdoor donor antenna. It is terminated with a N Type female. All mast mountable brackets are included.  The LPDA Antenna can be supplied with per-assembled lengths of low-loss cable  for easy installation and cost saving. The LPDA or log-periodic antenna is not a Yagi antenna as incorrectly referred to. A Yagi is a single band antenna where the LPDA is a ultra wide band antenna.
The LPDA Antenna has the advantage of a high gain, 11dBi, with a good F/B Front to Back Ratio.

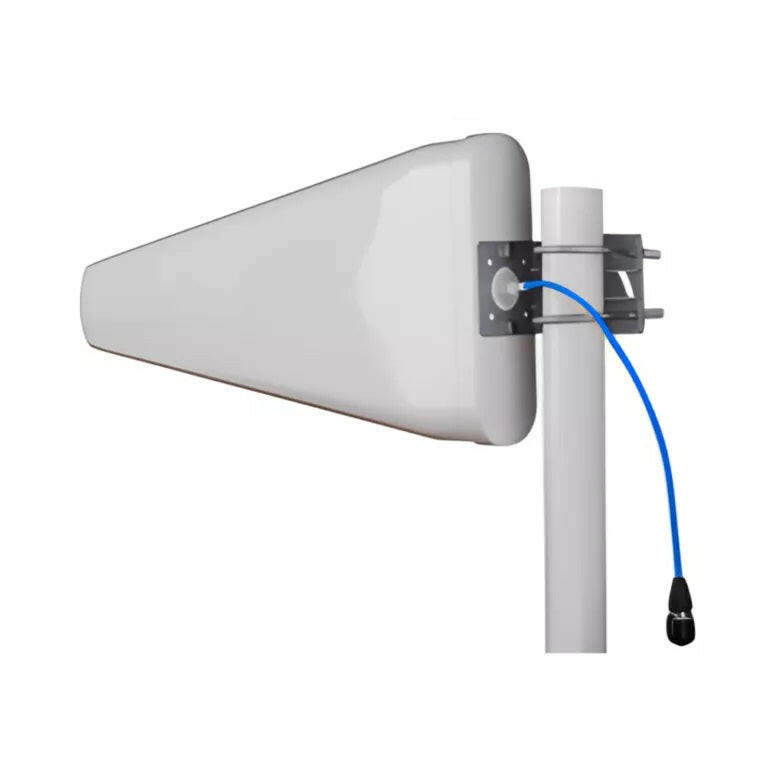

The LPDA Antenna can be wall or mast mounted and due to its flat shape is aesthetically pleasing and is corrosion and high wind resistant.

Specification:

• Freq.: 698-2700 MHz
• Gain:  11 dBi
• VSWR: ≤1.5
• HPBWH: 70° 50°
• Front to Back Ratio >15dB
• Polarization: Vertical

Application:

• Outdoors
• LPWAN, LoRa, LTE-M, NB-IoT, IoT, M2M applications
• Cellular networks 2G,3G, 4G & 5G
• Donor Antenna
• IEEE 802.11b/g WiFi applications
• Adheres to safety standards in RSA
• Mast or wall mountable
