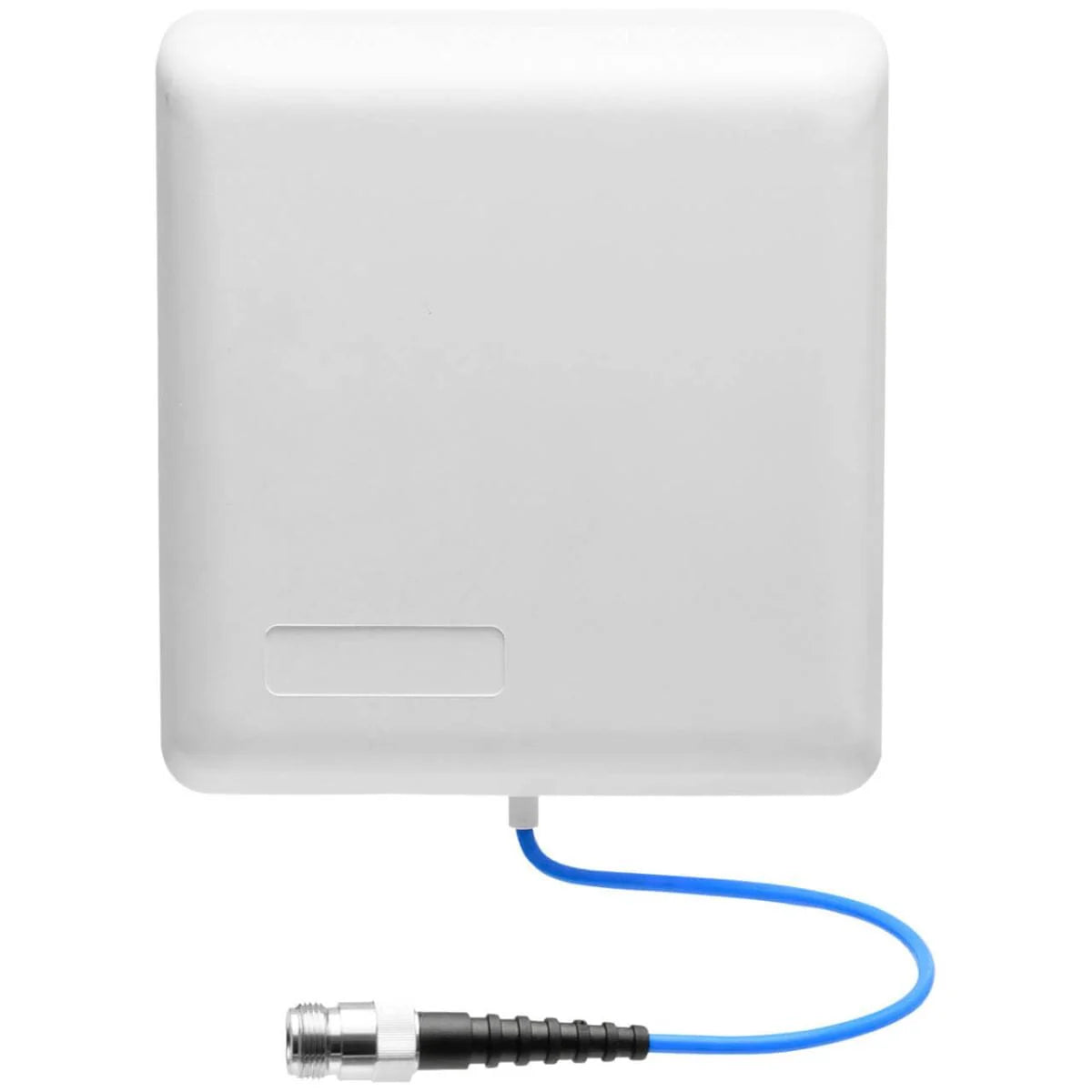

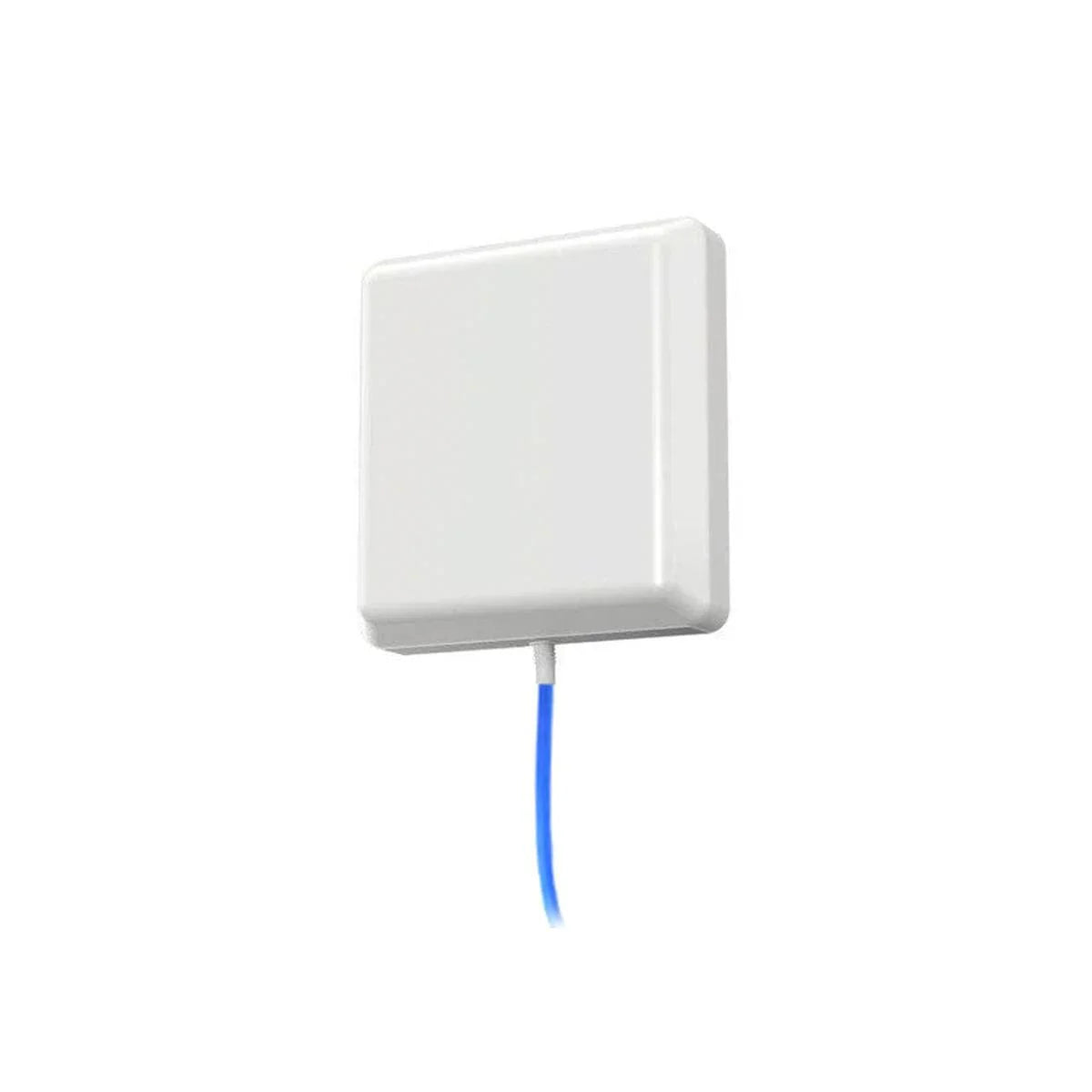

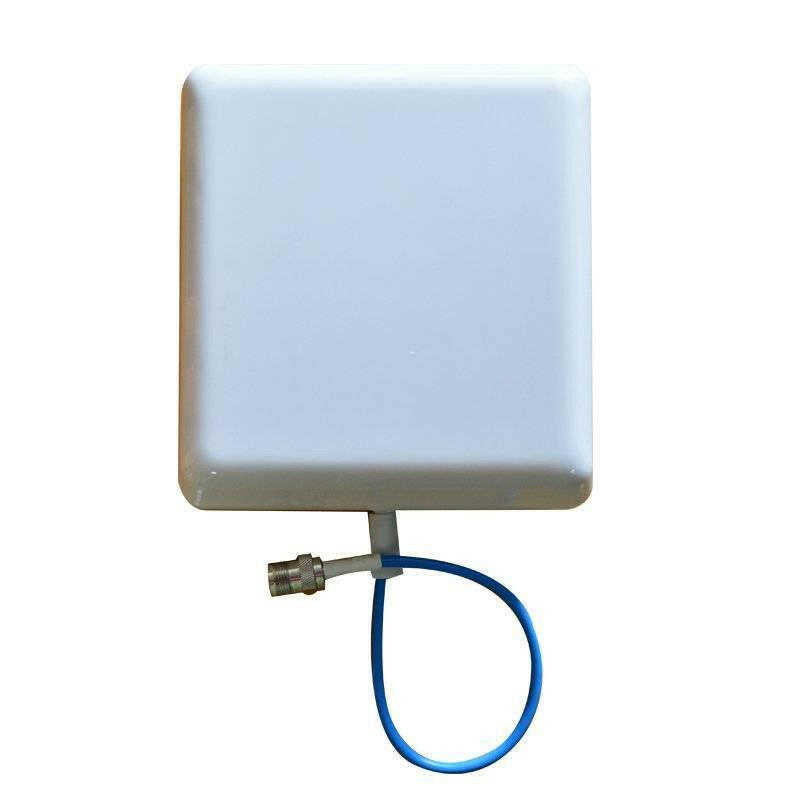

Panel Wall Mounted Antenna

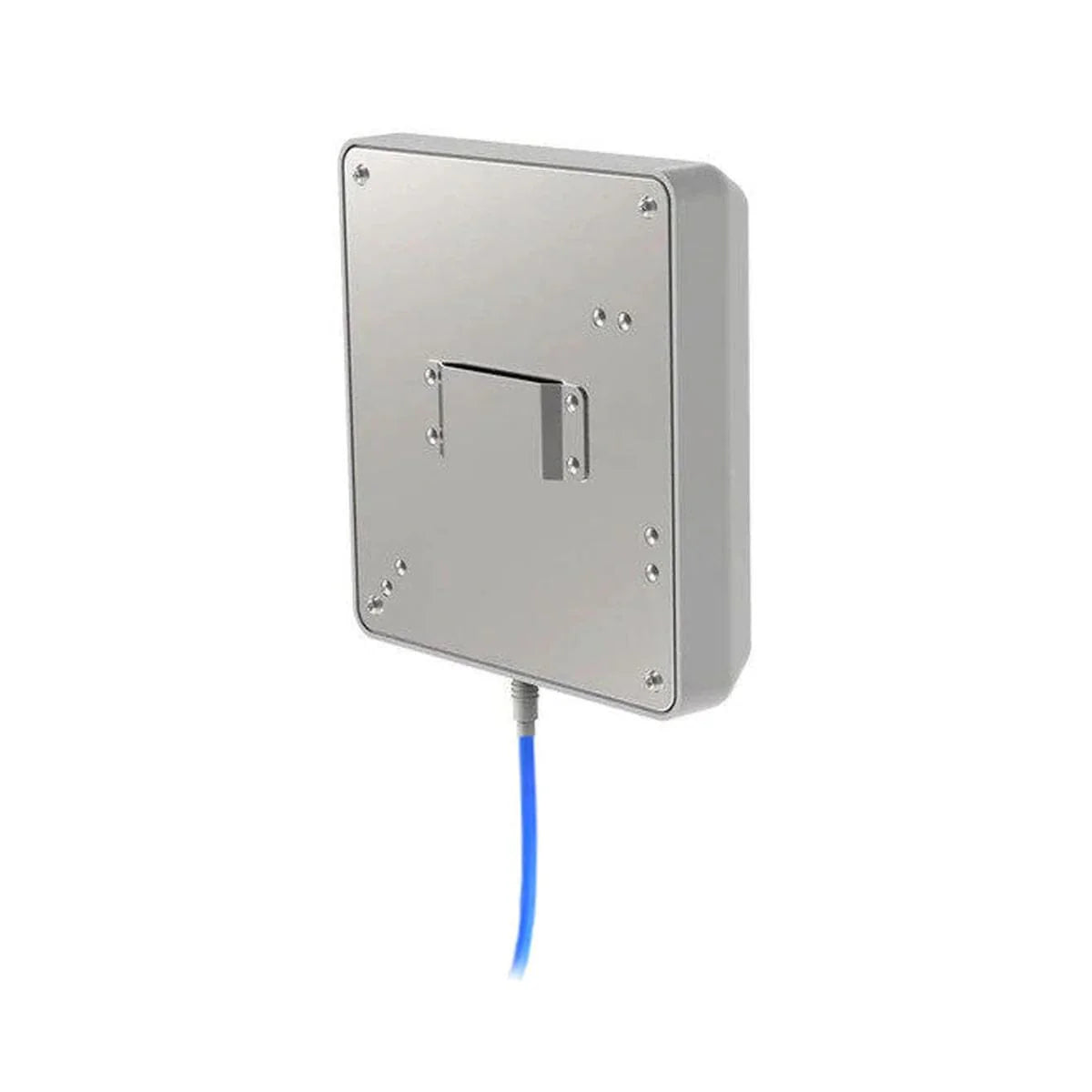

This Panel Antenna 698~3800MHz – 9dBi is an excellent full spectrum in/outoor coverage communication antenna. It is terminated with a N Type female. All wall mountable brackets are included.  The Panel Antenna can be supplied with per-assembled lengths of low-loss cable for easy installation.

Specification:

• Freq: 698-3800 MHz
• Gain: 9 dBi
• VSWR: ≤1.5
• HPBWv: 65°/55°
• Front to Back ratio: >15dB
• Polarization: Vertical

Application:

• In and outdoors – installation brackets included
• LPWAN, LoRa, LTE-M, NB-IoT, IoT, M2M applications
• Cellular networks 2G,3G, 4G & 5G
• DAS (Distributed Antenna Systems)
• IEEE 802.11b/g WiFi applications
• Adheres to safety standards in RSA
• Wall or in ceiling mount
