SMA F to TS9 Pigtail Connector - 2 Pack

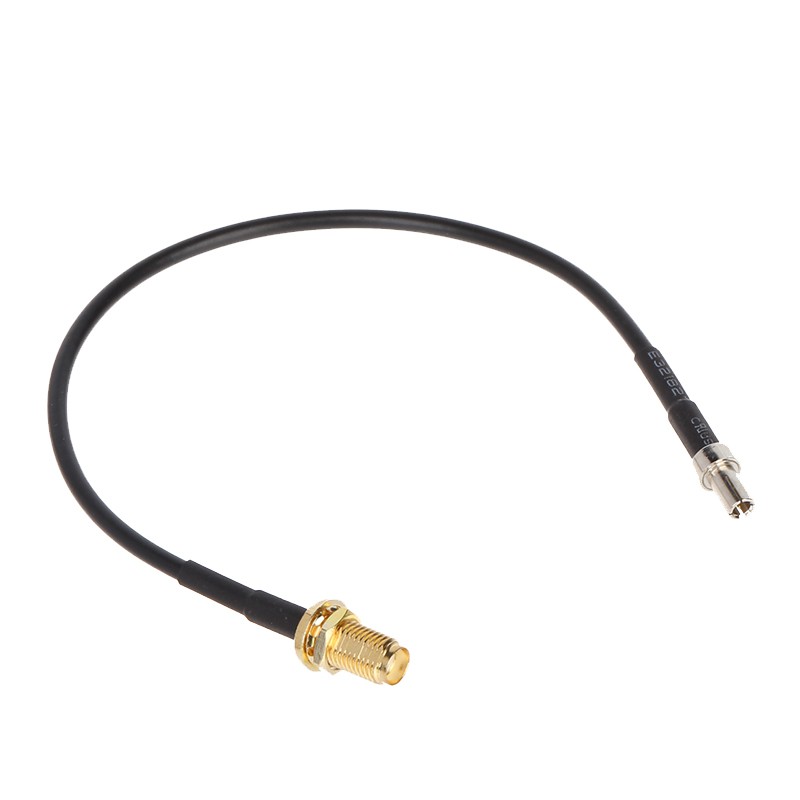

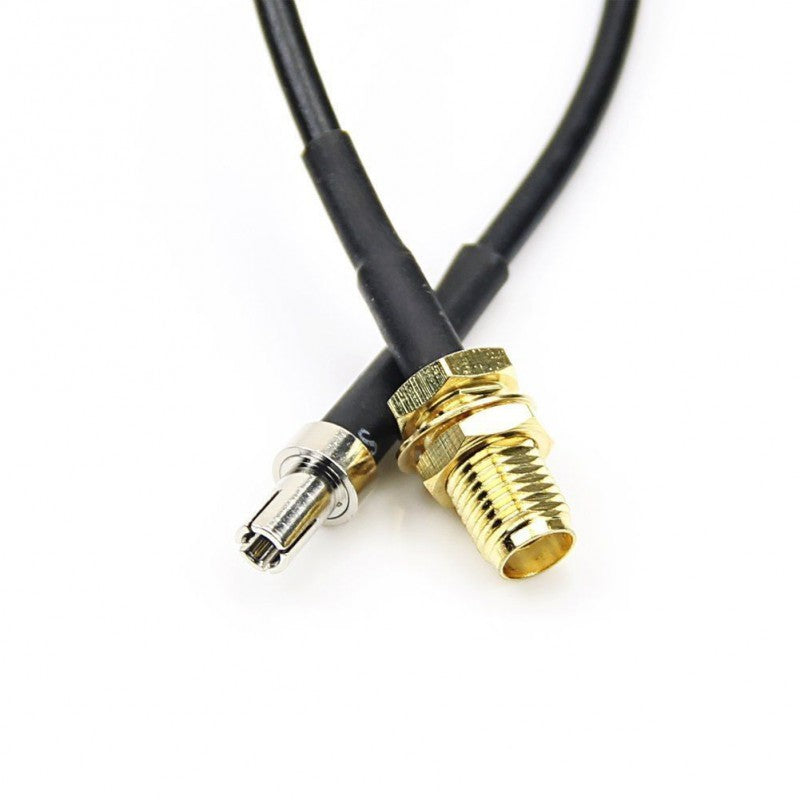

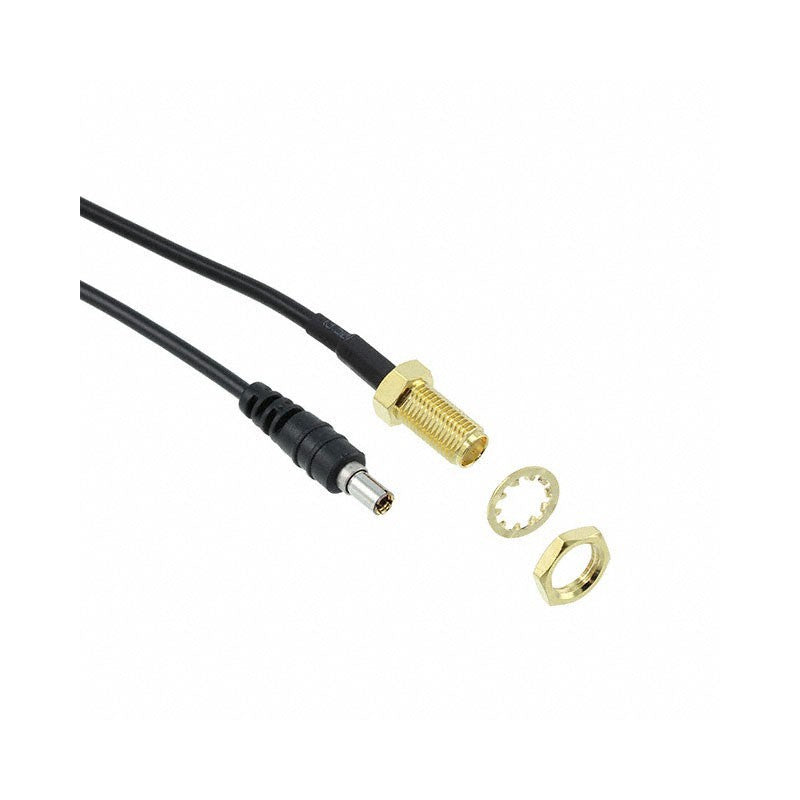

Name: SMA F to TS9 Pigtail Connector - 2 Pack
Brand: Locally Sourced
SKU: SMA-F-TS9-Connector
Price: 300.00 ZAR
Availability: InStock

R 300.00 ZAR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Please note: 2x of these SMA-F-TS9 pigtail cables are usually required on our antennas that usually have 2x SMA connectors for vertical & horizontal antennas

Product Key Feature:

Easy to install, flexible, convenient application
Most suitable for detachable 3G 4G/LTE 5G wireless routers, wireless card

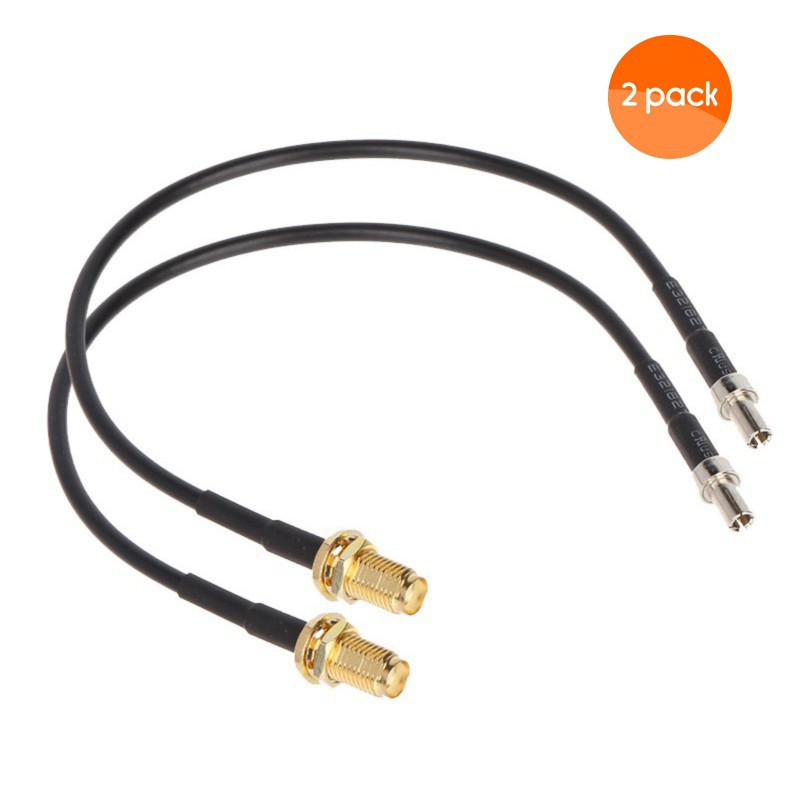

X2 SMA-F-TS9 Pigtail Cables

Product Spec:

Series	TS9 male plug to SMA female
Connector material	Gold-plated copper
Convert From	TS9 male jack
Convert To	SMA female jack
Temp.range	-65 +165°C (PE Cable -40 +85°C)
Vibration	MIL-STD-202,Method 213
Impedance	50Ω
Frequency Range	DC 12.4GHz(0-18GHz)
Working Voltage	335V max
Withstand Voltage	1000V rms
Centre Contact	≤ 3 mΩ
Outer Contact	≤ 2 mΩ
Insulation resistance	≥ 5000 MΩ
Insertion loss	≤0.15 dB/6GHz
