TP-LINK CPE710 5GHZ 867MBPS 23DBI WIRELESS AC OUTDOOR CPE
TP-LINK CPE710 5GHZ 867MBPS 23DBI WIRELESS AC OUTDOOR CPE
Regular price
R 1,850.00 ZAR
Regular price
Sale price
R 1,850.00 ZAR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
TP-LINK CPE710 5GHZ 867MBPS 23DBI WIRELESS AC OUTDOOR CPE
• 802.11ac for up to 867Mbps on 5GHz wireless data rate
• 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
• Excellent beam directivity, improved latency and noise cancellation

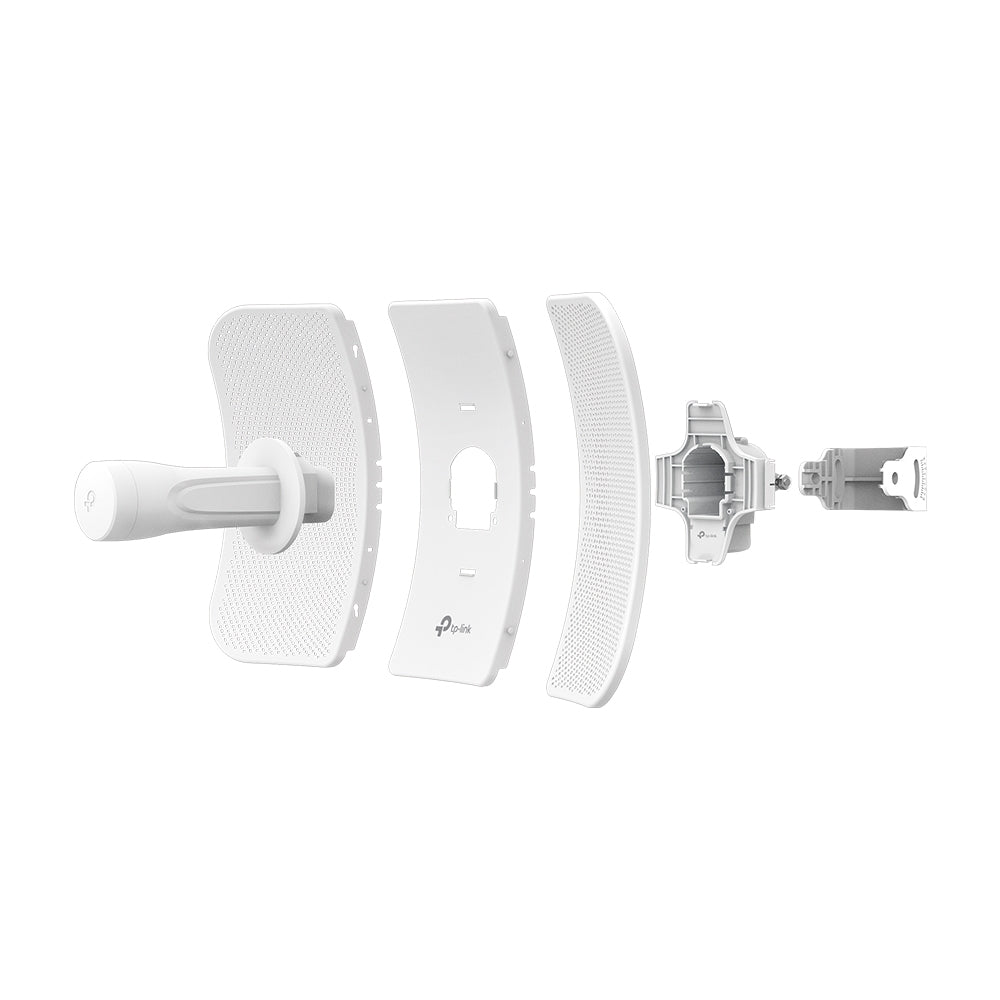

• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
• Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
• Pharos Control gives administrators a free, centralized management system
• Passive PoE supports to allow flexible deployment and convenient installation
| HARDWARE FEATURES | |
| Processor | Qualcomm 750MHz CPU, MIPS 74Kc |
| Memory | 128 MB DDR2 RAM, 16 MB Flash |
| Interface | 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/Passive POE) |
| 1 Reset Button | |
| Power Supply | Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) |
| Voltage range: 16-27VDC | |
| Dimensions ( W x D x H ) | 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) |
| Antenna Gain | 23dBi |
| Antenna Beamwidth | 9°(Azimuth), 7°(Elevation) |
| Protection | 15KV ESD Protection |
| 6KV Lightning Protection | |
| Enclosure | Material: Outdoor PC stabilized plastic |
| Weatherproof: IP65 water and dust proof design | |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n/ac |
| Wireless Speeds | Up to 867 Mbps (80 MHz, Dynamic) |
| Up to 400 Mbps (40 MHz, Dynamic) | |
| Up to 173.4 Mbps (20 MHz, Dynamic) | |
| Frequency | 5.15~5.85GHz |
| Transmit Power | Max. 27dBm (Adjustable power by 1dBm) |
| SOFTWARE FEATURES | |
| Network Configuration | WAN: Static/Dynamic/PPPoE/L2TP/PPTP |
| LAN: Static/Dynamic/DHCP | |
| Forwarding: ALG/UPnP/Virtual Server/Port Trigger | |
| Security: SPI Firewall/ Ping Forbidden/DoS Protection | |
| Access Control | |
| Static Routing | |
| Bandwidth Control | |
| IP & MAC Binding | |
| Wireless Configurations | |
| Selectable Channel Width: 5/10/20/40/80MHz | |
| Auto Channel Selection | |
| Transmit Power Control | |
| Dynamic Frequency Selection(DFS) | |
| WDS Enable/Disable | |
| Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, | |
| SSID Broadcast Enable/Disable | |
| Multi-SSID with VLAN Tagging (AP Mode only) | |
| Distance/ACK Timeout Setting | |
| Wireless MAC Address Filter | |
| Wireless Advanced: | |
| Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia | |
| Long Range PtP | |
| Management | Discovery and Remote Management via Pharos Control application |
| HTTP/HTTPS Web-based management | |
| System log | |
| SNMP Agent(v2c) | |
| Ping Watch Dog | |
| Dynamic DDNS | |
| SSH Server | |
| System Tools | Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory |
| Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP | |
| Spectrum Analyzer | |
| Speed Test | |
| Ping | |
| Traceroute | |
| Antenna Alignment | |
| System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications |
| POE ADAPTER FEATURES | |
| Dimensions (W x D x H) | 85.8×43.9×29.7 mm |
| Interfaces | 1 AC Jack with Earth Ground |
| 1 10/100Mbps Shielded Ethernet Port (Power + Data) | |
| 1 10/100Mbps Shielded Ethernet Port (Data) | |
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.6A Max2 |
| +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) | |
| Efficiency | >84.29% |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| OTHERS | |
| Certification | CE, FCC, RoHS, IP65, IC |
| Package Contents | Outdoor Wireless CPE |
| 24V 0.5A Passive PoE Adapter | |
| Pole Mounting Kits | |
| AC Power Cord | |
| Installation Guide | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. | |
