TP-LINK EAP773 | BE9300 CEILING MOUNT TRI-BAND WI-FI 7 ACCESS POINT
TP-LINK EAP773 | BE9300 CEILING MOUNT TRI-BAND WI-FI 7 ACCESS POINT
Regular price
R 5,650.00 ZAR
Regular price
Sale price
R 5,650.00 ZAR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
TP-Link EAP773 | BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Ultra-Thin Enterprise Wi-Fi 7 Access Point to Redefine Your Business Network
FEATURES:
- BE9300 Tri-Band Wi-Fi 7 - 5760Mbps (6.0GHz) + 2880Mbps (5.0GHz) + 574Mbps (2.4GHz)
- 1× 10G Port - Unlock the full potential of Wi-Fi 7
- Clear 6.0GHz Band - Brings cleaner and wider band resources to your Wi-Fi
- 320MHz Bandwidth - Up to 320MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds
- Low Latency and Interference - Multi-Link Operation and Multi-RUs ensure high network performance
- Advanced Functions - Supports centralized management, mesh and AI roaming
SPECIFICATIONS:
| HARDWARE FEATURES | |
| Interface | 1× 10G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3bt PoE or 12V 2.5A DC |
| Power Consumption | Support Smart Power Consumption Management |
| 24.05W (802.3bt, Full Functionality) | |
| 20.92W (12 2.5A, Full Functionality) | |
| 22.4W (802.3at Decrease 6.0GHz Power) | |
| 10.1W (802.3af, Radio Off, Only Main Chip and LAN Working) | |
| Dimensions (W × D × H) | 220 × 220 × 32.5mm |
| Antenna Type | 2.4GHz: 2× 3dBi |
| 5.0GHz: 2× 3dBi | |
| 6.0GHz: 2× 3dBi | |
| Bluetooth | 1× 4dBi, Bluetooth 5.2 |
| *Firmware update may be required | |

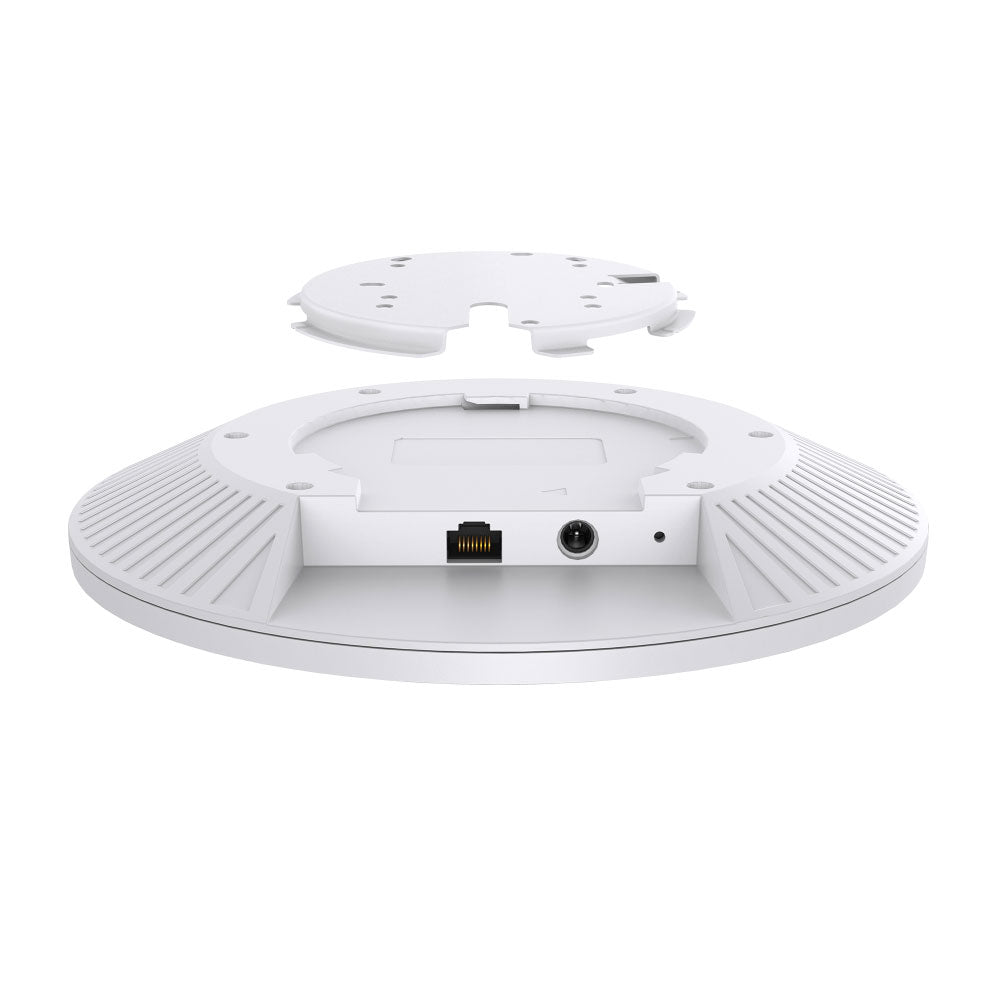

| Mounting | Ceiling / Wall Mounting (Kits Included) |
| WIRELESS FEATURES | |
| Coverage | 140m² |
| Wireless Client Capacity | 2.4GHz: 128 |
| 5.0GHz: 128 | |
| 6.0GHz: 128 | |
| Concurrent Clients | 380+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6.0GHz, 5.0GHz and 2.4GHz |
| Signal Rate | 574Mbps (2.4GHz) + 2880Mbps (5.0GHz) + 5760Mbps (6.0GHz) |
| Wireless Functions | MLO |
| 4K-QAM | |
| MU-MIMO | |
| HE320 | |
| Mesh | |
| BBS-Colouring | |
| OFDMA | |
| Load Balance | |
| Band Steering | |
| Beamforming | |
| Airtime Fairness | |
| Multiple SSIDs: 24× (8× on Each Band) | |
| Wireless Schedule | |
| Reboot Schedule | |
| QoS (WMM) | |
| Rate Limit | |
| Static IP / Dynamic IP | |
| RADIUS Accounting | |
| MAC Authentication | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Maximum Number of MAC Filter: 4,000 | |
| Wireless Isolation Between Clients | |
| VLAN | |
| Rogue AP Detection | |
| WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | <20dBm (2.4GHz, EIRP) |
| <23dBm (5.0GHz,Band 1 and Band 2, EIRP) | |
| <28dBm (5.0GHz, Band 3, EIRP) | |
| <23dBm (6.0GHz, EIRP) | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller |
| Omada Hardware Controller (OC300) | |
| Omada Hardware Controller (OC200) | |
| Omada Software Controller | |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller or an Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED On/Off Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-Based Management | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS, IC |
| Package Contents | EAP773 |
| Installation Guide | |
| Ceiling / Wall Mounting Kits | |
| *Note: Power Adapter is NOT included | |
| Environment | Operating Temperature: 0°C~40°C |
| Storage Temperature: -40°C~70°C | |
| Operating Humidity: 10%~90% Non-Condensing | |
| Storage Humidity: 5%~90% Non-Condensing | |
