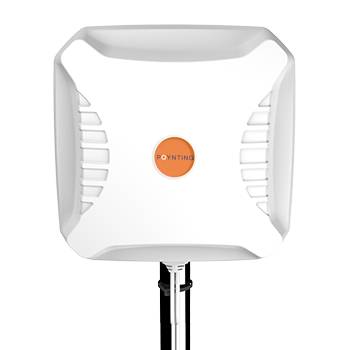

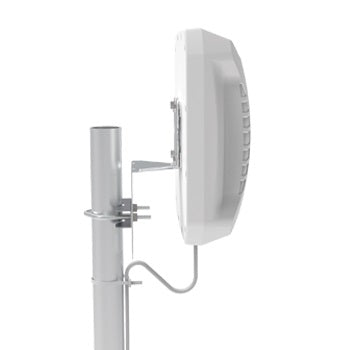

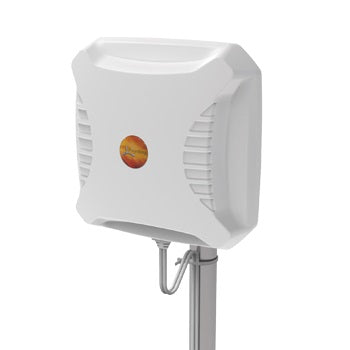

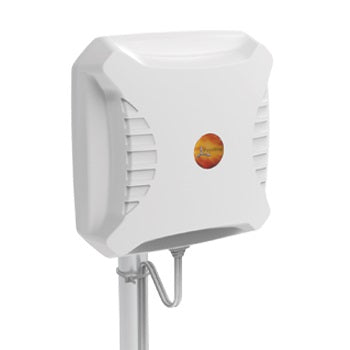

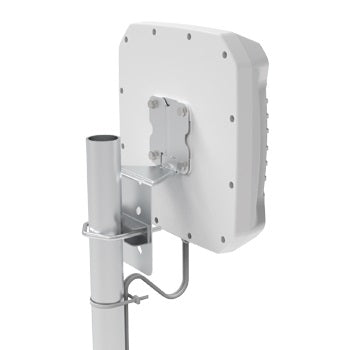

Xpol-2-5G Polarised Antenna

The XPOL-2-5G is Poynting’s third-generation “V3” version of its popular Cross Polarised (XPOL) 2x2 MIMO antenna. While the enclosure retains the familiar look of the second-generation “V2,” the internal design has been completely re-engineered using advanced metamaterial technology. The incorporation of Artificial Magnetic Conductors (AMC) and a patent-pending radiator configuration significantly enhances bandwidth and gain.

Expanded Frequency Coverage: Now includes the 3400 – 4200 MHz bands, in addition to 617 – 960 MHz, 1710 – 2170 MHz, and 2300 – 2700 MHz.
Enhanced Gain Performance: Delivers up to 3 dB higher gain in the 1700 MHz and 2.7 GHz bands compared to the V2 model.
Advanced Metamaterial Technology: Uses Artificial Magnetic Conductors (AMC) for improved signal efficiency and performance.
Optimised Radiation Patterns: Well-controlled radiation patterns enhance overall antenna effectiveness.
2x2 MIMO Configuration: Provides better throughput, stability, and signal quality for 2G, 3G, 4G, and 5G networks.

The XPOL-2-5G represents a major upgrade in antenna technology, offering exceptional performance improvements while maintaining its proven reliability. It is an ideal solution for next-generation 5G and LTE deployments.

Key Features:

• New advanced metamaterial technology
• Exceptional performance over the main 4G/5G bands
• High Gain for the antenna size
• Wideband 2x2 MIMO 4G/5G antenna
• Backwards compatible 2G/3G/4G/LTE/5G antenna
• Two cross polarised antennas in one enclosure for optimal LTE performance
• IP65 weather/dust and vandal resistant enclosure.
